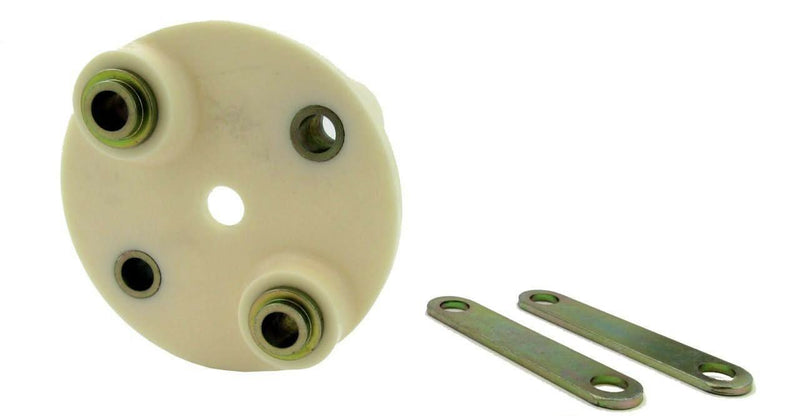

Enfield / Sonic Flexible Shaft Coupling
A quality flexible drive shaft coupling for connecting the gearbox output flange to the propeller drive flange. Manufactured by R & D Marine this coupling fits 4.99, 4.107 and 4.108 engines fitted with a Enfield leg.
Gearbox Flange Dimensions
- Diameter: 101.6mm
- Number of gearbox flange bolts: 2
- Coupling bolt hole nominal diameter: 11.2mm
- Pitch bolt circle: 76mm
Flexible Coupling Details
- Coupling maximum diameter: 108mm
- Length: 41.7mm
- Bolt diameter: 7/16 UNF
- Capacity per 100 rpm: 1.87kW 2.5HP
