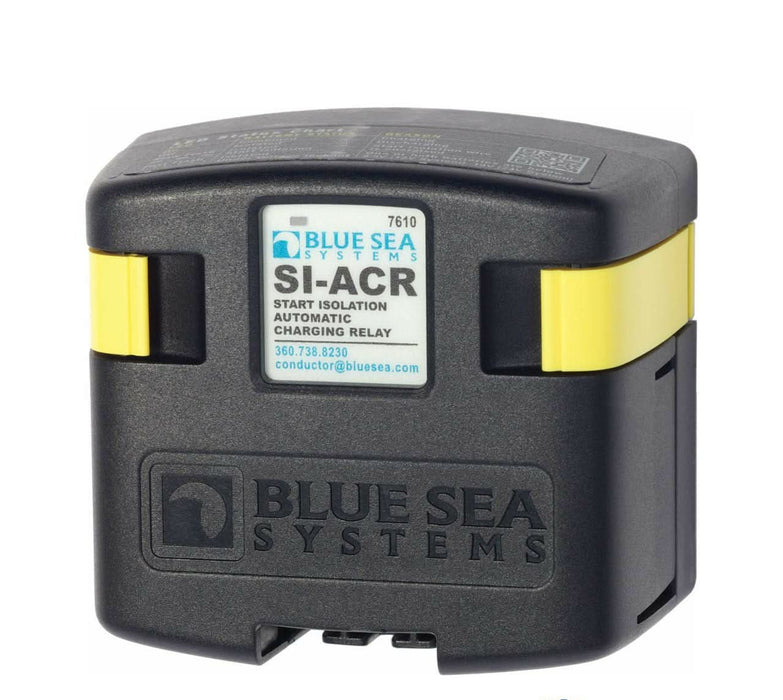

Blue Sea 120A Split Charge Relay

Original price £120.00 - Original price £120.00
Original price
£120.00
£120.00 - £120.00
Current price £120.00

High quality SI-ACR Blue Water 12 or 24v automatic battery charging relay designed in the USA. Automatically combines batteries during charging, isolates batteries when discharging and when starting engines. (More robust than the traditional diode systems) Details:

  • Automatically combines batteries during charging, isolates batteries when discharging and when starting engines.
  • Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
  • Designed for 12 or 24 volt systems
  • Hermetically sealed contacts/vaporproof
  • Water proof to IP67 standard
  • ISO 8846 Marine
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Supports high-output alternators up to 120 Amps
  • Dual sensing
  • Comes with wiring diagram and fixing screws
  • Part number 8-27650
  • Specifications

  • 210A Intermittent (5 min)
  • 120A Continuous

Optional Features

  • Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
  • Remote LED remotely indicates ACR states - requires optional LED

UK, European and Worldwide shipping available.
